Heating and cooling systems are essential for maintaining a comfortable and productive environment in commercial buildings. Offices, retail stores, restaurants, warehouses, and industrial facilities all rely on efficient climate control systems to support employees, customers, and equipment.
However, commercial spaces have very different requirements compared to residential properties. Larger building sizes, higher occupancy levels, and longer operating hours require specialized HVAC systems designed for durability and efficiency.
Understanding the different commercial HVAC system types can help business owners and property managers better understand how large buildings are heated and cooled. Each system is designed for specific building sizes, layouts, and operational needs.
In this guide, we’ll explore the most common commercial HVAC systems, how they work, and where they are typically used.
What Are Commercial HVAC Systems?
Commercial HVAC systems are heating, ventilation, and air conditioning systems designed specifically for large buildings and business environments. These systems regulate indoor temperature, humidity, and air quality while supporting high occupancy and continuous operation.
Compared to residential systems, commercial HVAC units typically:
- Handle larger spaces
- Provide advanced zoning control.
- Operate for longer hours.
- Deliver higher energy efficiency.
Different system designs are used depending on the building structure and cooling requirements.

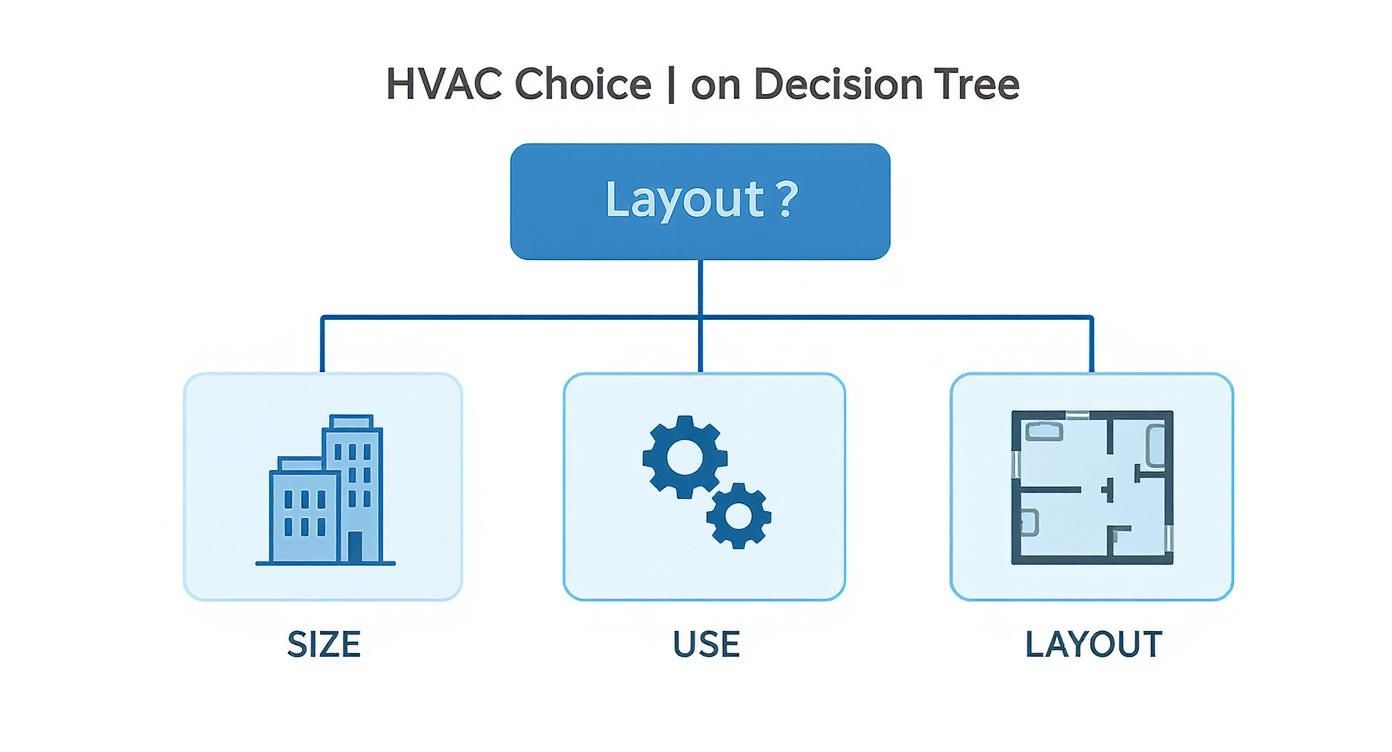

Common Commercial HVAC System Types
Several HVAC systems are commonly used in commercial buildings. Each offers unique advantages depending on the building’s size, layout, and cooling demands.
|
System Type |
Best For |
Key Advantage |
Typical Applications |
Single-Split System | Small commercial spaces | Low installation cost | Small offices, shops |
Medium to large buildings | All-in-one system | Retail stores, restaurants | |
VRF / VRV System | Multi-zone buildings | Superior energy efficiency | Hotels, offices |
Chiller System | Large facilities | High cooling capacity | Hospitals, campuses |

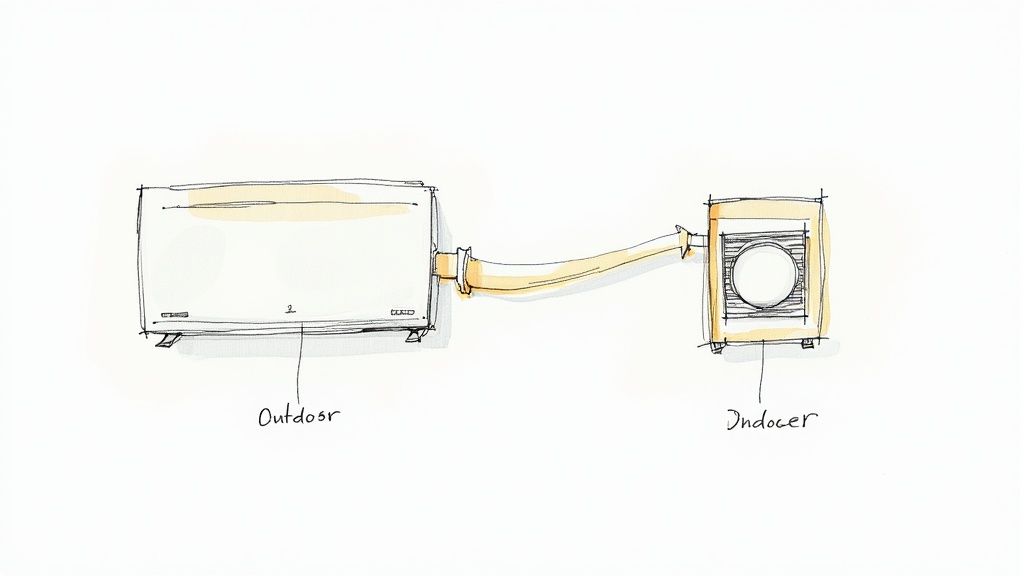

1. Single-Split Systems
Single-split systems are one of the simplest commercial HVAC system types. These systems operate with one indoor unit connected to one outdoor unit.
The outdoor unit contains the compressor and condenser, while the indoor unit distributes cooled or heated air into the space.
Because of their straightforward design, single-split systems are easy to install and maintain.
Where Single-Split Systems Are Used
Single-split systems work best in smaller commercial spaces that require independent temperature control.
Typical applications include:
- Small offices
- Retail stores
- Server rooms
- Individual conference rooms
- Restaurant additions
These systems are especially useful when only a specific area of a building needs heating or cooling.
Benefits of Single-Split Systems
- Lower installation costs
- Energy efficient for smaller areas
- Quiet indoor operation
- Easy maintenance
However, large buildings may require multiple single-split units, which can increase equipment and installation costs.

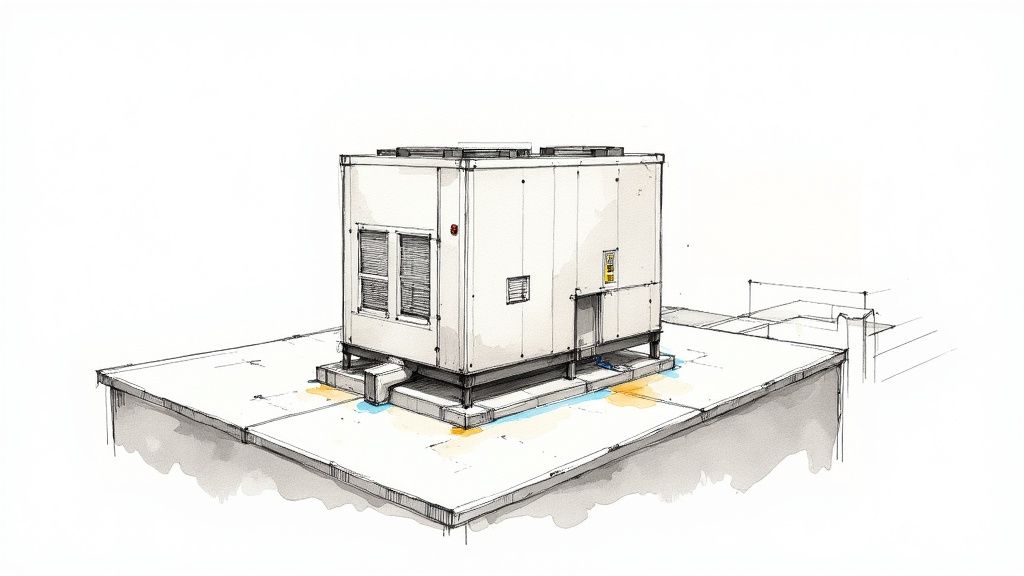

2. Rooftop Packaged Units (RTUs)
Rooftop packaged units are among the most widely used commercial HVAC systems. As the name suggests, these units are installed on the roof of a building.
An RTU combines all HVAC components into one single cabinet, including:
- Compressor
- Condenser
- Evaporator coil
- Air handler
The unit connects directly to the building’s ductwork to distribute conditioned air throughout the interior.
Why RTUs Are Popular in Commercial Buildings
Many businesses prefer rooftop systems because they offer practical advantages.
Space Efficiency
Installing HVAC equipment on the roof frees up indoor space for business operations, inventory storage, or customer seating.
Easy Maintenance Access
Technicians can service the unit without disrupting employees or customers inside the building.
Flexible Expansion
Additional rooftop units can be installed as a building expands or cooling demands increase.
Common Applications
RTUs are frequently used in:
- Retail stores and shopping centers
- Restaurants
- Warehouses
- Distribution centers
- Office buildings
Their ability to efficiently cool large open areas makes them one of the most practical solutions for commercial properties.
3. Variable Refrigerant Flow (VRF) Systems
Variable Refrigerant Flow systems represent one of the most energy-efficient commercial HVAC technologies available today.
A VRF system connects multiple indoor units to a single outdoor unit while controlling the refrigerant flow to each indoor unit individually. This allows different zones within a building to maintain different temperatures.
Instead of running continuously at full capacity, the system adjusts its output based on the real-time cooling or heating demand.
Simultaneous Heating and Cooling
One of the most advanced features of VRF systems is heat recovery.
Heat from warmer areas of the building can be redirected to cooler zones that require heating. This energy recycling significantly reduces overall energy consumption.
Benefits of VRF Systems
- Highly energy efficient
- Independent temperature control for each room
- Quiet indoor units
- Flexible installation with minimal ductwork
Common Applications
VRF systems are widely used in:
- Hotels
- Hospitals and healthcare facilities
- Office buildings
- Apartment complexes
- Mixed-use commercial properties
Although VRF systems require a higher upfront investment, they often reduce long-term energy costs.

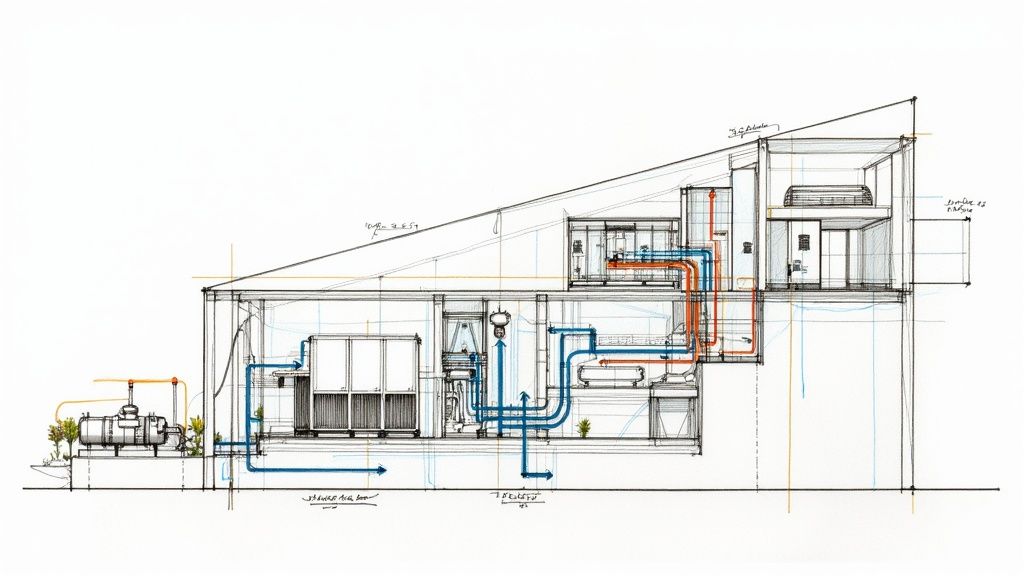

4. Chiller Systems
Chiller systems are designed for large-scale commercial and industrial facilities that require powerful cooling.
Unlike standard HVAC systems that cool air directly, chillers cool water. The chilled water is then circulated through pipes to air handling units throughout the building.
These air handling units use the chilled water to cool indoor air before distributing it through duct systems.
How Chiller Systems Work
The chiller removes heat from water through refrigeration cycles. The cooled water is pumped through a network of pipes connected to air handlers located throughout the building.
Because water transfers heat efficiently, this method allows large facilities to maintain consistent indoor temperatures.
Where Chiller Systems Are Used
Chiller systems are typically found in:
- Hospitals and medical centers
- University campuses
- Airports
- High-rise office buildings
- Industrial manufacturing facilities
These buildings require high-capacity cooling systems that operate continuously.
Advantages of Chiller Systems
- Extremely powerful cooling capacity
- Efficient for very large buildings
- Long lifespan (20–25 years)
- Centralized temperature control
However, chiller systems require specialized installation and maintenance due to their complexity.
Benefits of Modern Commercial HVAC Systems
Modern commercial HVAC systems offer several benefits for businesses and large facilities.
Improved Energy Efficiency
Advanced systems like VRF technology reduce energy consumption by adjusting output based on demand.
Better Temperature Control
Zoning capabilities allow different areas of a building to maintain separate temperature settings.
Improved Indoor Air Quality
Modern HVAC systems improve ventilation and filter airborne contaminants.
Lower Operating Costs
Energy-efficient systems reduce electricity consumption, lowering monthly energy bills.
Conclusion
Commercial buildings rely on reliable HVAC systems to maintain comfortable working environments and support daily operations. Because every building has different heating and cooling needs, several commercial HVAC system types are available to meet specific requirements.
Single-split systems work well for smaller spaces, while rooftop packaged units are commonly used in retail stores and warehouses. VRF systems provide advanced energy efficiency and zoned temperature control, and chiller systems deliver the powerful cooling required for large facilities.
Understanding how these systems work helps business owners and property managers make informed decisions about heating and cooling infrastructure. Investing in the right HVAC system improves comfort, reduces energy costs, and supports long-term building performance.
Key Takeaways
- Commercial HVAC systems are designed to manage large spaces and heavy usage.
- The most common commercial HVAC system types include single-split systems, rooftop packaged units (RTUs), VRF systems, and chiller systems.
- Each system serves different building sizes and operational requirements.
- Energy-efficient HVAC systems help reduce long-term operating costs and energy bills.
- Proper installation and regular maintenance significantly extend the system’s lifespan.
FAQ’s
What is the most common commercial HVAC system?
Rooftop packaged units (RTUs) are among the most commonly used systems in commercial buildings due to their all-in-one design and ease of maintenance.
How long do commercial HVAC systems last?
Most commercial HVAC systems last 15 to 25 years, depending on the system type, usage levels, and maintenance schedule.
Which HVAC system is most energy efficient?
VRF systems are considered one of the most energy-efficient commercial HVAC technologies because they adjust refrigerant flow based on real-time demand.
What HVAC system is best for large buildings?
Large facilities such as hospitals, airports, and universities often use chiller systems because they provide powerful centralized cooling.
